In the world of packaging, security and integrity are paramount. Consumers expect products to be exactly as they left the manufacturer, with clear evidence if that integrity has been compromised. The ROPP capping machine addresses this need with elegant simplicity, applying metal closures that provide both a secure seal and unmistakable tamper evidence.
The term ROPP stands for Roll On Pilfer Proof, a descriptive name that captures the essential function of this technology. ROPP caps are metal closures, typically manufactured from fine-grade aluminium chosen for its ductility and formability. Unlike screw caps that come pre-threaded, ROPP caps start as cylindrical cross-section closures with no internal threads, applied as smooth metal sleeves over bottle necks and then formed in place to match the container’s thread pattern and locking ring.
The “pilfer proof” aspect is what sets ROPP closures apart. Once applied and formed onto the bottle, the cap creates a tamper-evident seal. Any attempt to remove or disturb the cap becomes immediately visible to the end user. This security feature makes ROPP capping particularly valuable in applications where product integrity is critical, including pharmaceuticals, distilleries, wines, and premium beverages.
How ROPP Capping Technology Works
The ROPP capping process is a carefully orchestrated sequence of operations that transforms a smooth metal sleeve into a perfectly fitted, threaded closure in seconds. Understanding this process requires examining the key components and their interplay.
Machine Components and Workflow
A typical ROPP capping machine consists of several integrated assemblies working in harmony:
- Infeed conveyor receives bottles from upstream filling equipment
- Feed worm spaces bottles correctly and transfers them to the infeed star wheel
- Star wheel assembly precisely aligns and positions bottles under the sealing heads
- Cap feeder orients and delivers ROPP caps in the correct direction through a delivery chute
- Capping turret houses the sealing heads that perform the actual capping operation
The Sealing Process
The transformation of a smooth ROPP cap into a threaded, secured closure relies on a precision mechanism. As a bottle enters below the sealing head, the cap is placed on the bottle neck. The sealing head typically consists of multiple rollers, often four in a symmetrical arrangement.
Two rollers perform the initial operation, skirting, spinning, and sealing the cap onto the bottle neck. Simultaneously, another two rollers perform the threading operation, forming the cap to match the bottle’s existing threads and locking ring. This symmetrical system ensures equal pressure is applied from all sides, creating consistent, reliable seals every time. After the sealing operation is complete, the sealing head moves upward, and the bottle exits through the star wheel to continue along the production line.
The rollers produce the required pressure for sealing through rotary motion, with the side load and top load carefully controlled to achieve the desired seal without damaging the bottle. The bottle neck and threads must be sufficiently strong to withstand the pressure required to form the threads, making glass or hard plastic common container materials for ROPP applications.
Types of ROPP Capping Machines
Manufacturers can select from various ROPP capping machine configurations based on production requirements and budget considerations.
Semi-Automatic ROPP Capping Machines
Semi-automatic machines represent the entry-level option, suitable for start-up industries or operations with lower production demands. These economical machines can deliver approximately 20 to 30 bottles per minute, depending on operator competence. They feature motorised sealing heads that ensure quality ROPP sealing results despite the lower automation level.
These versatile machines can apply caps to a variety of vial and bottle shapes and sizes, with change parts or capping heads accommodating different cap types including PP caps, ROPP aluminium caps, and plastic screw caps. For small-scale production facilities or medium-size production needs, semi-automatic machines offer an accessible entry point into ROPP technology.
Automatic Single Head ROPP Capping Machines
Automatic single head machines represent a step up in automation, adopting a concise motor design that synchronises conveyor, star wheels, and platform turret operation. These machines can deliver around 50 bottles per minute, depending on container diameter. They offer the benefits of automation without the complexity of multi-head systems.

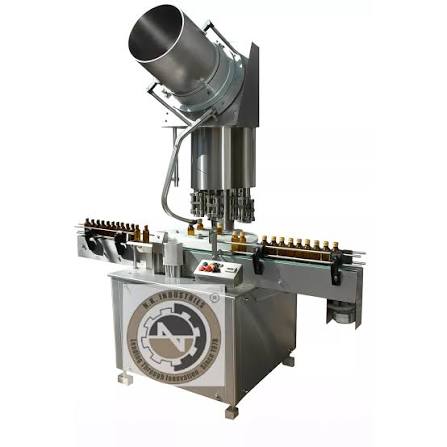

Multi-Head Rotary ROPP Capping Machines
For high-volume production environments, multi-head rotary ROPP capping machines deliver exceptional throughput. Available in configurations including 4-head, 6-head, 8-head, and 12-head models, these machines can achieve output speeds from 100 to 300 containers per minute.
Multi-head machines feature advanced capabilities including:
- Color touchscreen PLC controls with error messaging
- Fast product changeovers with motorised height adjustment
- No bottle, no cap system preventing waste
- Integrated fault lights and alarms for production error notification
- Clutch systems in feed worms to prevent bottle damage
- Fully interlocked guarding for operator safety
These machines can be supplied with cap elevators and can handle various capping applications including food and beverages, pharmaceuticals, pesticides, distilleries, cosmetics, toiletries, personal care, chemicals, and oil products.
Key Features and Benefits
ROPP capping machines incorporate numerous features that enhance performance, reliability, and operator convenience.
Tamper Evidence and Product Security
The primary advantage of ROPP technology is the inherent tamper evidence it provides. Unlike standard screw caps that can be removed and reapplied without visible trace, ROPP closures show clear signs of disturbance. The base of the cap deforms around the securing ring on the bottle neck during application, and any attempt to remove the cap causes visible deformation.
Precision Control and Reliability
Modern ROPP capping machines offer precise control over the capping process through servo motor technology and touchscreen interfaces. Many systems can store multiple recipes, enabling quick changeovers between different products. Symmetrical four-sided sealing systems ensure equal power application to each side of the cap, providing consistent results regardless of cap variation.
Safety and Protection
Various safety features protect both operators and products. Clutch systems prevent bottle breakage or jamming by disengaging when excessive force is detected. Fully interlocked guarding ensures operator safety during operation. No bottle/no cap systems prevent caps from being applied when bottles are absent, reducing waste and preventing machine jams.
Sanitary Construction
For industries requiring high hygiene standards, ROPP capping machines are available with stainless steel construction and enclosures. All contact parts can be manufactured from SS 304, Delrin, aluminium, and silicon, with MS frame structures featuring SS cladding. Cap hoppers can be completely dismantled for easy cleaning.
Applications Across Industries
ROPP capping technology finds application across diverse industries where product integrity and tamper evidence are paramount.
Pharmaceutical Industry: ROPP capping is widely used for sealing medication bottles, syrups, and other pharmaceutical products where product safety and tamper evidence are essential. The precise sealing capability ensures medication integrity and patient safety.
Distilleries and Wineries: The beverage alcohol industry extensively uses ROPP closures for wine, spirits, and other bottled beverages. The tamper-evident seal provides consumers with assurance that the product has not been compromised.
Food and Beverage: ROPP capping is suitable for various food products and beverages, particularly those requiring secure sealing and tamper evidence.
Cosmetics and Personal Care: Premium cosmetic and personal care products benefit from ROPP closures that combine security with a high-quality appearance.
The Bottom Line
The ROPP capping machine stands as a testament to thoughtful engineering, addressing the fundamental need for product security with elegant efficiency. By transforming smooth metal sleeves into perfectly formed, tamper-evident closures, these machines provide manufacturers with reliable sealing capability that protects both product integrity and brand reputation.
The technology has evolved to offer various configurations from entry-level semi-automatic machines to high-speed multi-head rotary systems capable of processing 300 containers per minute. Across all configurations, the core benefit remains unchanged: secure, tamper-evident sealing that builds consumer trust.
